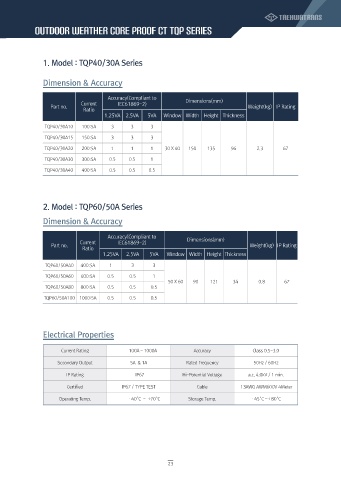

Outdoor Weather core Proof CT TQP Series

1. Model : TQP40/30A Series

Dimension & Accuracy

Accuracy(Compliant to
Current IEC61869-2) Dimensions(mm)
Part no. Weight(kg) IP Rating
Ratio
1.25VA 2.5VA 5VA Window Width Height Thickness

TQP40/30A10 100:5A 3 3 3
TQP40/30A15 150:5A 3 3 3
TQP40/30A20 200:5A 1 1 1 30 X 40 150 135 96 2.3 67

TQP40/30A30 300:5A 0.5 0.5 1
TQP40/30A40 400:5A 0.5 0.5 0.5

2. Model : TQP60/50A Series

Dimension & Accuracy

Accuracy(Compliant to
Current IEC61869-2) Dimensions(mm)
Part no. Weight(kg) IP Rating
Ratio
1.25VA 2.5VA 5VA Window Width Height Thickness
TQP60/50A40 400:5A 1 3 3

TQP60/50A60 600:5A 0.5 0.5 1
50 X 60 90 121 34 0.8 67
TQP60/50A80 800:5A 0.5 0.5 0.5

TQP60/50A100 1000:5A 0.5 0.5 0.5

Electrical Properties

Current Rating 100A ~ 1000A Accuracy Class 0.5~3.0

Secondary Output 5A & 1A Rated Frequency 50Hz / 60Hz

IP Rating IP67 Hi-Potential Voltage a.c. 4.0kV / 1 min.
Certified IP67 / TYPE TEST Cable 13AWG AWM600V 4Meter

Operating Temp. -40°C ~ +70°C Storage Temp. -45°C ~ +80°C

23
