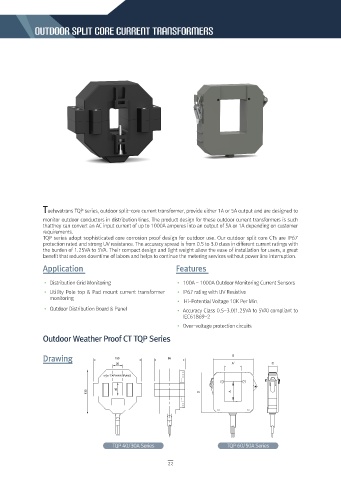

Outdoor Split core Current Transformers

Taehwatrans TQP series, outdoor split-core current transformer, provide either 1A or 5A output and are designed to
monitor outdoor conductors in distribution lines. The product design for these outdoor current transformers is such
thatthey can convert an AC input current of up to 1000A amperes into an output of 5A or 1A depending on customer
requirements.
TQP series adopt sophisticated core corrosion proof design for outdoor use. Our outdoor split core CTs are IP67
protection rated and strong UV resistance. The accuracy spread is from 0.5 to 3.0 class in different current ratings with
the burden of 1.25VA to 5VA. Their compact design and light weight allow the ease of installation for users, a great
benefit that reduces downtime of labors and helps to continue the metering services without power line interruption.

Application Features

• Distribution Grid Monitoring • 100A ~ 1000A Outdoor Monitoring Current Sensors
• Utility Pole top & Pad mount current transformer • IP67 rating with UV Resistive
monitoring
• Hi-Potential Voltage 10K Per Min.
• Outdoor Distribution Board & Panel • Accuracy Class 0.5~3.0(1.25VA to 5VA) compliant to
IEC61869-2
• Over-voltage protection circuits
Outdoor Weather Proof CT TQP Series

Drawing

TQP 40/30A Series TQP 60/50A Series
