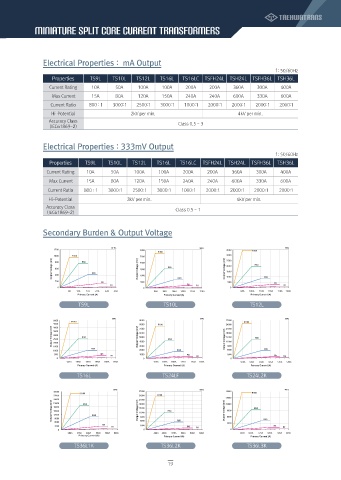

Miniature Split Core Current Transformers
Electrical Properties : mA Output
f : 50/60Hz
Properties TS9L TS10L TS12L TS16L TS16LC TSFH24L TSH24L TSFH36L TSH36L
Current Rating 10A 50A 100A 100A 200A 200A 360A 300A 400A
Max Current 15A 80A 120A 150A 240A 240A 600A 330A 600A
Current Ratio 800 : 1 3000:1 2500:1 3000:1 1000:1 2000:1 2000:1 2000:1 2000:1
Hi-Potential 2kV per min. 4kV per min.
Accuracy Class Class 0.5 ~ 3
(IEC61869-2)
Electrical Properties : 333mV Output
f : 50/60Hz
Properties TS9L TS10L TS12L TS16L TS16LC TSFH24L TSH24L TSFH36L TSH36L
Current Rating 10A 50A 100A 100A 200A 200A 360A 300A 400A
Max Current 15A 80A 120A 150A 240A 240A 600A 330A 600A
Current Ratio 800 : 1 3000:1 2500:1 3000:1 1000:1 2000:1 2000:1 2000:1 2000:1
Hi-Potential 2kV per min. 4kV per min.
Accuracy Class Class 0.5 ~ 1
(IEC61869-2)
Secondary Burden & Output Voltage
TS9L TS10L TS12L
TS16L TS24LF TS24L2K
TS36L1K TS36L2K TS36L3K
