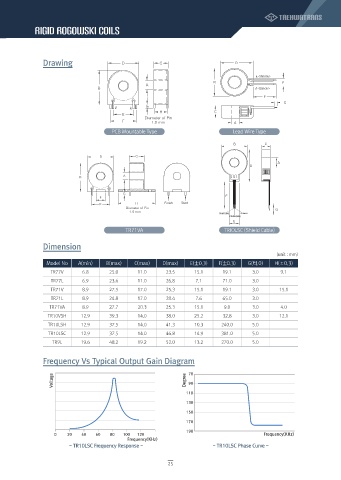

Rigid Rogowski Coils

Drawing

PCB Mountable Type Lead Wire Type

TR71VA TRIOLSC (Shield Cable)

Dimension
(unit : mm)
Model No A(min) B(max) C(max) D(max) E(士0.3) F(士0.3) G(터.0) H(±0.3)
TR77V 6.8 25.0 11.0 23.5 15.1 19.1 3.0 9.1
TR77L 6.9 23.6 11.0 26.8 7.1 71.0 3.0
TR71V 8.9 27.5 17.0 25.3 15.1 19.1 3.0 15.1
TR71L 8.9 24.8 17.0 28.4 7.6 65.0 3.0
TR71VA 8.9 27.7 20.3 25.3 15.1 9.0 3.0 4.0
TR10VSH 12.9 39.3 14.0 38.0 25.2 32.8 3.0 12.1
TR10LSH 12.9 37.5 14.0 41.3 10.3 240.0 5.0
TR10LSC 12.9 37.5 14.0 46.8 14.9 381.0 5.0
TR9L 19.6 48.2 19.2 52.0 13.2 270.0 5.0

Frequency Vs Typical Output Gain Diagram

Voltage Degree 70
90
110
130
150
170
190
0 20 40 60 80 100 120 Frequency(KHz)
Frequency(KHz)
- TR10LSC Frequency Response - - TR10LSC Phase Curve -
