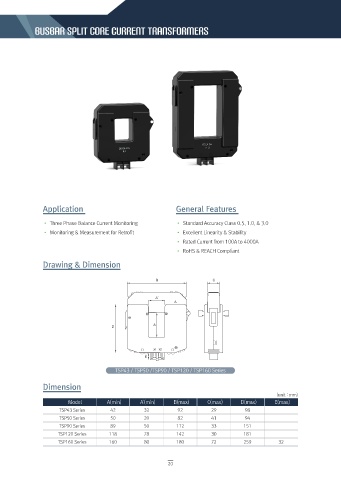

Busbar Split core Current Transformers
Application General Features
• Three Phase Balance Current Monitoring • Standard Accuracy Class 0.5, 1.0, & 3.0
• Monitoring & Measurement for Retrofit • Excellent Linearity & Stability
• Rated Current from 100A to 4000A
• RoHS & REACH Compliant
Drawing & Dimension
TSP43 / TSP50 /TSP90 / TSP120 / TSP160 Series
Dimension
(unit : mm)
Model A(min) A'(min) B(max) C(max) D(max) E(max)
TSP43 Series 42 32 92 29 98
TSP50 Series 50 20 82 41 94
TSP90 Series 89 50 112 33 151
TSP120 Series 118 78 142 30 181
TSP160 Series 160 80 180 72 259 32
