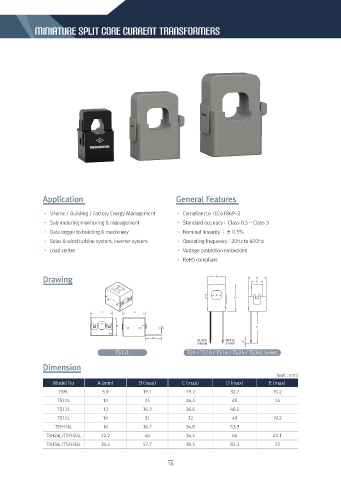

Miniature Split Core Current Transformers

Application General Features

• \Home / Building / Factory Energy Management • Compliant to IEC61869-2
• Sub metering monitoring & management • Standard accuracy : Class 0.5 ~ Class 3
• Data logger to building & machinery • Nominal linearity : ± 0.5%
• Solar & wind turbine system, inverter system • Operating frequency : 20Hz to 400Hz
• Load center • Voltage protection embedded
• RoHS compliant

Drawing

TS12L TS9 / TS10 / TS16 / TS24 / TS36L Series

Dimension
(unit : mm)
Model No A (min) B (max) C (max) D (max) E (max)
TS9L 5.9 19.1 19.2 32.7 10.2
TS10L 10 25 26.4 40 14
TS12L 12 36.2 36.6 40.2
TS16L 16 31 32 48 19.2
TSFH16L 16 36.7 34.8 53.9
TSH24L/TSFH24L 22.2 46 34.2 66 22.1
TSH36L/TSFH36L 34.4 57.7 38.5 83.3 23

18
