P. 24

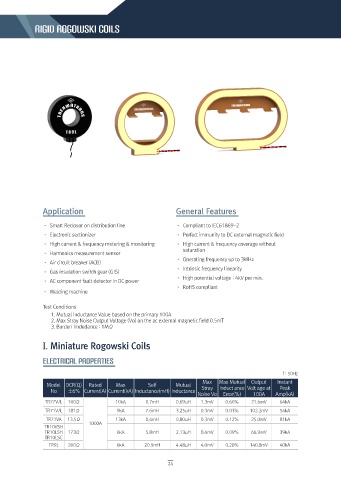

Rigid Rogowski Coils







































                Application                                     General Features


                •  Smart Reclosor on distribution line          •  Compliant to IEC61869-2
                •  Electronic sectionizer                       •  Perfect immunity to DC external magnetic field
                •  High current & frequency metering & monitoring  •   High current & frequency coverage without
                                                                  saturation
                •  Harmonics measurement sensor
                                                                •  Operating frequency up to 3MHz
                •  Air circuit breaker (ACB)
                                                                •  Intrinsic frequency linearity
                •  Gas insulation switch gear (GIS)
                                                                •  High potential voltage : 4kV per min.
                •  AC component fault detector in DC power
                                                                •  RoHS compliant
                •  Welding machine


                Test Conditions
                   1. Mutual Inductance Value based on the primary 100A
                   2. Max Stray Noise Output Voltage (Vo) on the ac external magnetic field 0.5mT
                   3. Burden Imdedance : 1MΩ


                I. Miniature Rogowski Coils

                Electrical Properties

                                                                                                      f : 50Hz
                                                                         Max   Max Mutual  Output   Instant
                  Model  DCR(Q)  Rated    Max         Self     Mutual    Stray   Induct ance  Volt age at   Peak
                   No    士6% Current(A) Current(kA) lnductance(mH) Inductance
                                                                       Noise Vo  Error(%)  100A    Amp(kA)
                 TR77V/L  100Ω            10kA       0.7mH      0.69µH  1.3mV    0.60%    21.6mV     64kA
                 TR71V/L  181Ω             9kA       7.6mH      3.25µH  0.3mV    0.03%    102.2mV    54kA
                 TR71VA  13.5Ω            13kA       0.4mH      0.80µH  0.3mV    0.12%    25.0mV     81kA
                                 1000A
                 TR10VSH
                 TR10LSH  173Ω             6kA       5.8mH      2.13µH  0.6mV    0.09%    66.9mV     39kA
                 TR10LSC
                  TR9L   200Ω              6kA      20.9mH      4.48µH  4.0mV    0.28%    140.8mV    40kA


                                                             24
