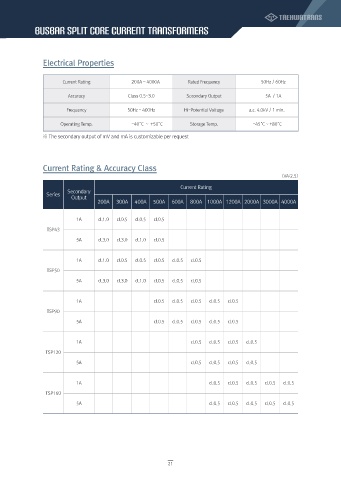

Busbar Split core Current Transformers
Electrical Properties
Current Rating 200A ~ 4000A Rated Frequency 50Hz / 60Hz
Accuracy Class 0.5~3.0 Secondary Output 5A / 1A
Frequency 50Hz - 400Hz Hi-Potential Voltage a.c. 4.0kV / 1 min.
Operating Temp. -40°C ~ +50°C Storage Temp. -45°C ~ +80°C
※ The secondary output of mV and mA is customizable per request
Current Rating & Accuracy Class
(VA:2.5)
Current Rating
Secondary
Series
Output
200A 300A 400A 500A 600A 800A 1000A 1200A 2000A 3000A 4000A
1A cl.1.0 cl.0.5 cl.0.5 cl.0.5
TSP43
5A cl.3.0 cl.3.0 cl.1.0 cl.0.5
1A cl.1.0 cl.0.5 cl.0.5 cl.0.5 cl.0.5 cl.0.5
TSP50
5A cl.3.0 cl.3.0 cl.1.0 cl.0.5 cl.0.5 cl.0.5
1A cl.0.5 cl.0.5 cl.0.5 cl.0.5 cl.0.5
TSP90
5A cl.0.5 cl.0.5 cl.0.5 cl.0.5 cl.0.5
1A cl.0.5 cl.0.5 cl.0.5 cl.0.5
TSP120
5A cl.0.5 cl.0.5 cl.0.5 cl.0.5
1A cl.0.5 cl.0.5 cl.0.5 cl.0.5 cl.0.5
TSP160
5A cl.0.5 cl.0.5 cl.0.5 cl.0.5 cl.0.5
