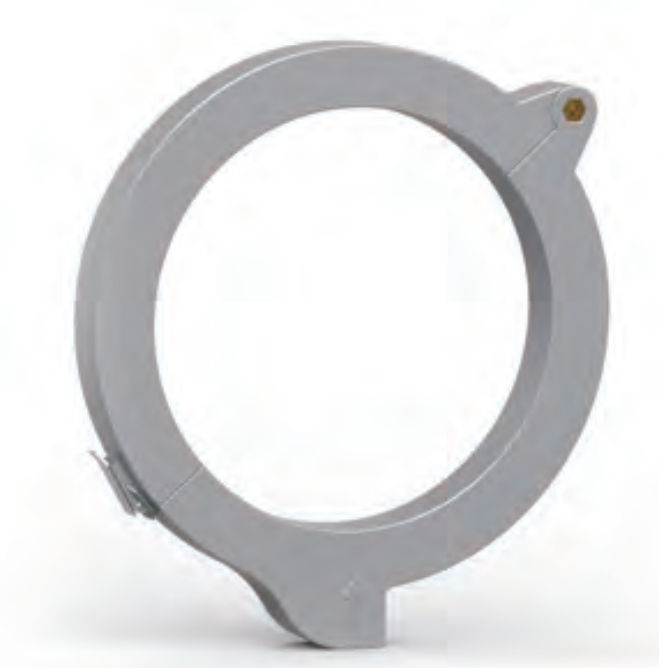

Clamp-on Rogowski Coils, TSR and TPR series, provide excellent accuracy mainly for monitoring purpose.
They are designed in a way that that their output is hardly influenced by the position of the conductor within the loop and that cross talk,
interference from external magnetic fields caused by from nearby conductors, is very low.
They show accuracy class 1.0 compliant to IEC61869-10 and less than ±1.0% positioning error around 360 degree of coil loop.
TSR series are also UL recognized. They are IP65 protection rating and UV protective so that they show reliable performance in outdoor applications.
Clamp-on Rogowski Coils
have wide dynamic range where the same coil can be used to measure currents from mA to hundreds of kA.
Also they have excellent linearity less than 1.0%. By sophisticated engineering of coil winding and design process,
the frequency bandwidth for -3dB ranges from hundreds of kHz and to Mhz.
The coreless structure enables Rogowski coils to be used in limited space.
Compared with the traditional current transformers, they do not require the power consumption along with an extremely light weight.
In the safety aspect, the safe secondary circuit block is not necessary to prevent the damage
from the high instantaneous surge current due to an air core usage. In regards to applications,
they have the AC accurate measurement, what is more, including the measurement of AC components,
ripple current, and DC components.
Clamp-on Rogowski Coils are available in different sizes and can be engineered according to customers’ requests,
therefore they can be used in all those applications where traditional transducers are not fitting due to its size and/ or weight.
TSR and TPR series are designed to have strong tolerance against the influence of external magnetic fields,
therefore it is capable of an excellent measurement from low currents to hundreds of kA.
The Rogowski coils must be connected to an electronic integrator for 90° phase shift compensation and frequency equalization.
Integrators sold separately.
- Revenue-Grade distribution transformer monitoring
- Energy sub-meters
- Pole-top transformer monitoring
- Power quality monitoring
- Condition monitoring
- Distributed measurement systems
- Accuracy class 1.0 by IEC61869-10
- UL Recognized
- Protection Degree IP65 & UV Protective
- Very low positioning errors & excellent orthogonality
- Easy & quick installation in uninterruptible power line
- VAdaptable for a large range of coil diameter
1. Monitoring Clamp-on Rogowski Coils
Dimension
unit:mm/inch
| Model No | A(min) | B(max) | C(max) | D(max) |
|---|---|---|---|---|
| TSR35L/C | 35.0(1.378") | 83.0(3.268") | 20.9(0.823") | 99.5(3.917") |
| TSR115L/C | 114.5(4.508") | 151.2(5.953") | 22.4(0.882") | 173.0(6.811") |
| TSR145L/C | 145.0(5.709") | 190.0(7.480") | 22.5(0.886") | 210.0(8.268") |
* L : 600V Cable Type
* C : BNC Connector Type
Electrical Property
| Accuracy Class (IEC61869-10) | Class 0.5 | Operating Frequency | 20Hz~20KHz |
|---|---|---|---|
| Output Voltage @1000A,60Hz | 120mV | Nominal Measurement Current | 5A to 5000A |
| Output Voltage @1000A,50Hz | 100mV | Hi-Potential Voltaqe per min. | a.c. 7400V |
| Reading Error (20% Rating) | ≤ 0.75% | Full Scale Error (Whole Range) | ≤ 0.5% |
| Phase Displacement | < 0.5° | Connected Cable | AWG24 600V |
| Max Position Error (0° ~ 360°) | Avr.± 1.5%(max 2%) | IP Rating & UV Resistance | IP66 & UV Resistive |
| Max External Stray Mutual Inductance Error (1000A, AC0.5mT) |
< 0.1% | Temperature Drift | ±0.15% per 10°C (-40°C ~ +70°C) |
| Ambient Operating Temp | -40°C ~ +70°C | Storage Temperature | -40°C ~ +80°C |
2. High Frequency Clamp-on Rogowski Coils (Model Name : NO.)
Electrical Property

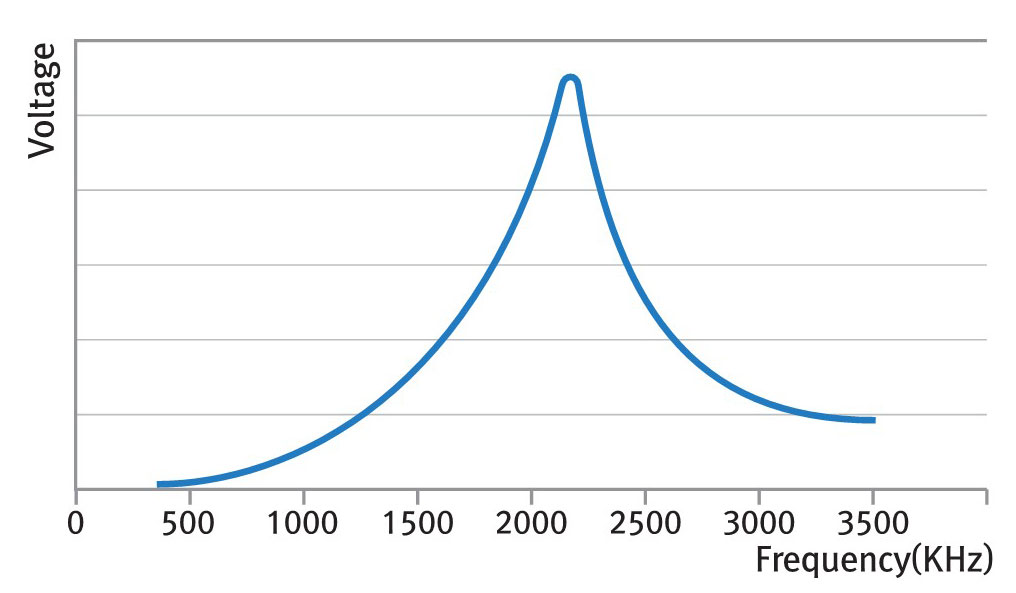

| Self Inductance | 43uH | Resonance Frequency | 2.3MHz |
|---|---|---|---|
| 1 Amp Output @1.7MHz | 1.2Vrms | Nominal Measurement Current | 5A to 5000A |
| Output Voltage @1000A,50Hz | 100mV | Hi-Potential Voltaqe per min. | a.c. 7400V |
| Reading Error (20% Rating) | ≤ 0.75% | Full Scale Error (Whole Range) | ≤ 0.5% |
| Phase Displacement | < 0.5° | Connected Cable | AWG24 600V |
| Max Position Error (0° ~ 360°) | Avr.± 1.5%(max 2%) | IP Rating & UV Resistance | IP66 & UV Resistive |
| Max External Stray Mutual Inductance Error (1000A, AC0.5mT) |
< 0.1% | Temperature Drift | ±0.15% per 10°C (-40°C ~ +70°C) |
| Ambient Operating Temp. | -40°C ~ +70°C | Storage Temperature | -40°C ~ +80°C |
