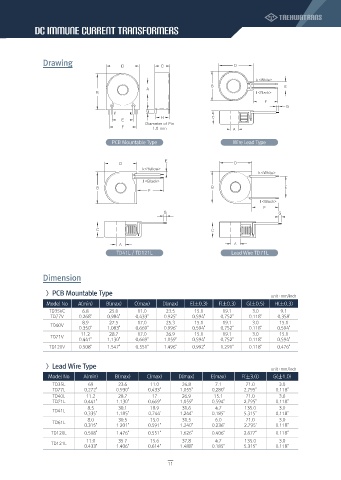

DC Immune Current Transformers

Drawing

PCB Mountable Type Wire Lead Type

TD41L / TD121L Lead Wire TD71L

Dimension

〉 PCB Mountable Type unit : mm/inch

Model No A(min) B(max) C(max) D(max) E(土0.3) F(土0.3) G(土0.5) H(土0.3)
TD35VC 6.8 25.0 11.0 23.5 15.1 19.1 3.0 9.1
TD77V 0.268" 0.984" 0.433" 0.925" 0.594" 0.752" 0.118" 0.358'
8.9 27.5 17.0 25.3 15.1 19.1 3.0 15.1
TD40V
0.350" 1.083" 0.669" 0.996" 0.594" 0.752" 0.118" 0.594"
11.2 28.7 17.0 26.9 15.1 19.1 3.0 15.1
TD71V
0.441" 1.130" 0.669" 1.059" 0.594" 0.752" 0.118" 0.594"
TD120V 0.508" 1.547" 0.551" 1.496" 0.992" 1.291" 0.118" 0.476"

〉 Lead Wire Type unit : mm/inch
Model No A(min) B(max) C(max) D(max) E(max) F(士3.0) G(士1.0)
TD35L 69 23.6 11.0 26.8 7.1 71.0 3.0
TD77L 0.272" 0.930" 0.433" 1.055" 0,280" 2.795" 0.118"
TD40L 11.2 28.7 17 26.9 15.1 71.0 3.0
TD71L 0.441" 1.130" 0.669" 1.059" 0.594" 2.795" 0.118"
8.5 30.1 18.9 31.6 4.7 135.0 3.0
TD41L
0.335" 1.185" 0.744' 1.244" 0.185" 5.315" 0.118"
8.0 30.5 15.0 31.5 6.0 71.0 3.0
TD61L
0.315" 1 201" 0.591" 1.240" 0.236" 2.795' 0.118"
TD120L 0.508" 1.476" 0.551" 1.626" 0.406" 2.677" 0.118"
11.0 35 7 15.6 37.8 4.7 135.0 3.0
TD121L
0.433" 1.406" 0.614" 1.488" 0.185" 5.315" 0.118"

11
