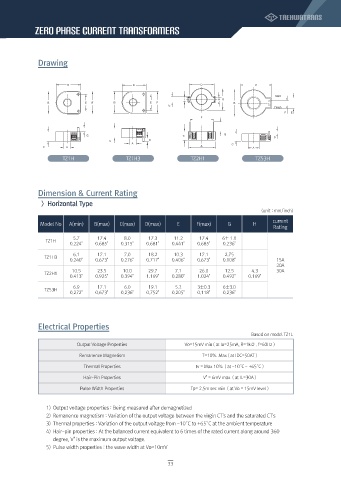

Page 33 - 태화트랜스

Zero Phase Current Transformers

Drawing

TZ1H TZ1H3 TZ2H1 TZ53H

Dimension & Current Rating
〉 Horizontal Type
(unit : mm/inch)
current
Model No A(min) B(max) C(max) D(max) E F(max) G H
Rating
5.7 17.4 8.0 17.3 11.2 17.4 6土 1.0
TZ1H
0.224" 0.685" 0.315" 0.681" 0.441" 0.685" 0.236"
6.1 17.1 7.0 18.2 10.3 17.1 2.75
TZ1H3
0.240" 0.673" 0.276" 0.717" 0.406" 0.673" 0.108" 15A
20A
10.5 23.5 10.0 29.7 7.1 26.0 12.5 4.3 30A
TZ2H1
0.413" 0.925" 0.394" 1.169" 0.280" 1.024" 0.492" 0.169"
6.9 17.1 6.0 19.1 5.2 3士0.3 6士3.0
TZ53H
0.272" 0.673" 0.236" 0.752" 0.205" 0.118" 0.236"

Electrical Properties
Based on model TZ1L
Output Voltage Properties Vo=15mV min ( at lo=25mA, R=1kΩ . f=60Hz )
Remanence Magnetism T=10% Max ( at IDC=50AT )

Thermal Properties tv = Max 10% ( at -10°C ~ +65°C )
Hair-Pin Properties V" = 6mV max ( at IL=30A )

Pulse Width Properties Tp= 2.5m sec min ( at Vo = 15mV level )

1) Output voltage properties : Being measured after demagnetized
2) Remanence magnetism : Variation of the output voltage between the virgin CT's and the saturated CT's
3) Thermal properties : Variation of the output voltage from -10°C to +65°C at the ambient temperature
4) Hair-pin properties : At the balanced current equivalent to 6 times of the rated current along around 360
degree, V" is the maximum output voltage.
5) Pulse width properties : the wave width at Vo=10mV
