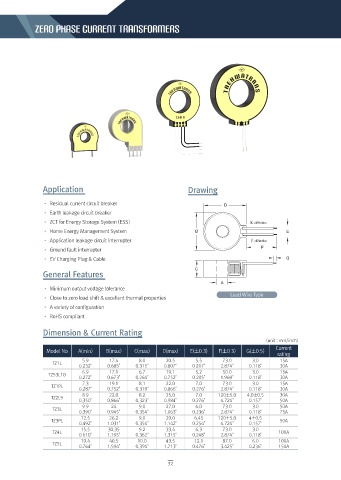

Page 32 - 태화트랜스

Zero Phase Current Transformers

Application Drawing

• Residual current circuit breaker
• Earth leakage circuit breaker
• ZCT for Energy Storage System (ESS)
• Home Energy Management System
• Application leakage circuit interrupter
• Ground fault interrupter
• EV Charging Plug & Cable

General Features

• Minimum output voltage tolerance
Lead Wire Type
• Close to zero load shift & excellent thermal properties
• A variety of configuration
• RoHS compliant

Dimension & Current Rating
(unit : mm/inch)
Current
Model No A(min) B(max) C(max) D(max) E(土0.3) F(土0 3) G(土0.5)
rating
5.9 17.4 8.0 20.5 5.5 73.0 3.0 15A
TZ1L
0.232" 0.685" 0.315" 0.807" 0 217" 2.874" 0.118" 30A
6.9 17.1 6.7 19.1 5.2 50.0 3.0 15A
TZ53L10
0.272" 0.673" 0.264" 0.752" 0.205" 1.969" 0.118" 30A
7.3 19.1 8.1 22.0 7.0 73.0 3.0 15A
TZ1PL
0.287" 0.752" 0.319" 0.866" 0.276" 2.874" 0.118" 30A
8.9 22.0 8.2 25.0 7.0 120土5.0 4.0士0.5 30A
TZ2L9
0.350" 0.866" 0.323" 0.984" 0.276" 4.724" 0.157" 50A
9.9 24 9.0 27.0 6.0 73.0 3.0 50A
TZ3L
0.390" 0.945" 0.354" 1.063" 0.236" 2.874" 0.118" 75A
12.5 26.2 9.0 29.0 6.45 120土5.0 4土0.5
TZ3PL 50A
0.492" 1.031" 0.354" 1.142" 0.254" 4.724" 0.157"
15.5 30.35 9.2 33.4 6.3 73.0 3.0
TZ4L 100A
0 610" 1.195" 0.362" 1.315" 0.248" 2.874" 0.118"
19.4 40.5 10.0 43.5 12.1 87.0 6.0 100A
TZ5L
0.764" 1.594" 0.394" 1.713" 0.476" 3.425" 0.236" 150A
32
