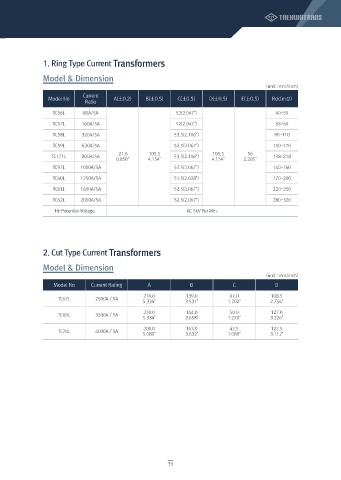

1. Ring Type Current Transformers
Model & Dimension
(unit : mm/inch)
Current
Model No A(土0.2) B(土0.5) C(土0.5) D(土0.5) E(土0.5) Rdc(mΩ)
Ratio
TC56L 80A/5A 52(2.047") 40-55
TC57L 160A/5A 52(2.047") 56-60
TC58L 320A/5A 53.5(2.106") 90-110
TC59L 630A/5A 52.5(2.067") 150-170
21.6 105.5 105.5 56
TC171L 800A/5A 53.5(2.106") 198-218
0.850" 4.154" 4.154" 2.205"
TC97L 1000A/5A 52.5(2.067") 140-160
TC60L 1250A/5A 51.5(2.028") 170-200
TC61L 1600A/5A 52.5(2.067") 220-250
TC62L 2000A/5A 52.5(2.067") 280-320
Hi-Potential Voltage AC 5kV Per Min.
2. Cut Type Current Transformers
Model & Dimension
(unit : mm/inch)
Model No Current Rating A B C D
210.0 139.0 67.0 108.5
TC67L 2500A / 5A
5.334" 3.531" 1.702" 2.756"
210.0 144.0 50.0 127.0
TC69L 3200A / 5A
5.334" 3.658" 1.270" 3.226"
200.0 143.0 42.5 122.5
TC70L 4000A / 5A
5.080" 3.632" 1.080" 3.112"
